PULL HANDLE YES!

YES!

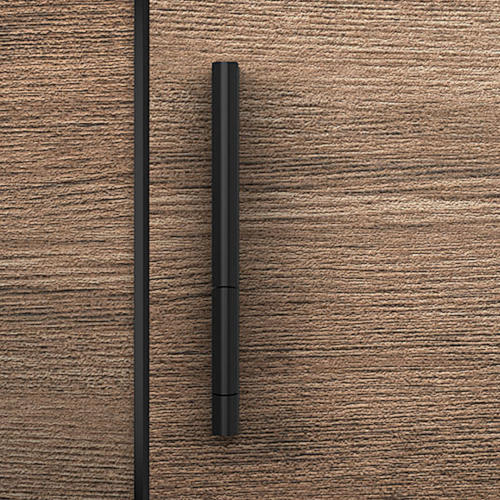

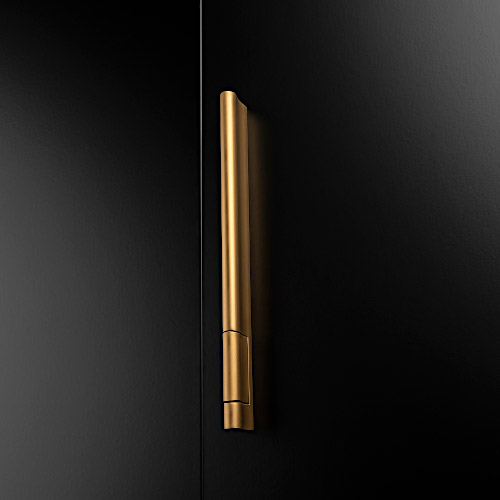

Elegant timeless pull handle available in different lengths. It is prepared also with integrated WC/bathroom lock system. This pull handle is produced either in a minimalist full version or with a 2-finger grip hole.
This pull handle is produced from massive brass, for maximal selection is available in 10 surface finishes and 5 different lengths.

design: Roman Ulich

standard

cylindrical

WC IN

WC EX

Technical information

Assembly system	screwing the pull handles against each other with 2 screws, variant WC with 2x additional screws, visible mini screw heads
Assembly time	2 - 4 min., variant WC/ bathroom 5-10 min.
Dimensional application	standardly for door thickness 38 - 45 mm, bigger door thickness should be specified to deliver longer mounting screws
Preparation into door	drilling hole
Surface finishes	SNi nickel matt, SNi-gr nickel matt grinded, Cr polished chrome, Ms brass natural, Ms-A brass antique, Ms-L brass polished, TIN-C titanium chrome matt, TIN-B titanium brown matt, TIN-A titanium brass matt, TiN-K titanium black matt
Lengths	110, 210, 310, 610, 910 mm
Dimension	width 15 mm, output over the surface of the door 35 mm
Variant WC/bathroom	integrated WC lock system, external part with safety groove for emergency opening + mini lock
Variant cylindrical	magnetic cover rosettes diameter 54 mm, th. 5 mm + mini lock
Assembly instructions + preparation into door	Assembly instructions Pull handle Yes! 210 (PDF) Assembly instructions Pull handle Yes! 210 WC (PDF) Assembly instructions Pull handle Yes! 310 (PDF) Assembly instructions Pull handle Yes! 310 WC (PDF) Assembly instructions Pull handle Yes! 610 (PDF) Assembly instructions Pull handle Yes! 610 WC (PDF) Assembly instructions Pull handle Yes! 910 (PDF) Assembly instructions Pull handle Yes! 910 WC (PDF) Assembly instructions Pull handle Yes! for glass (PDF) Drawing Pull handle Yes milling (PDF), (DWG) Drawing Pull handle Yes WC Milling (PDF), (DWG)

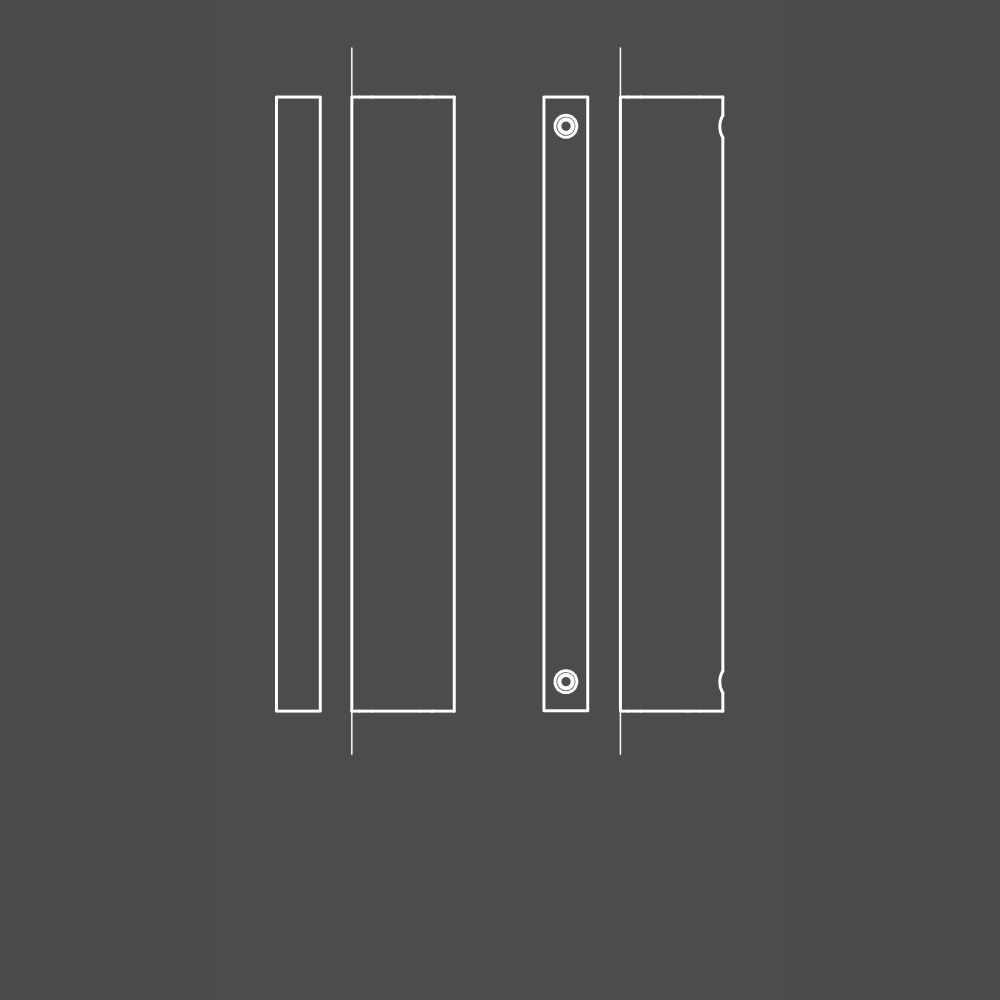

Technical drawings

YES! 210
standard

YES! 210
cylindrical

YES! 210
WC IN

YES! 210
WC EX

YES! 210
WC IN with hole

YES! 310
WC IN with hole

YES! 610
WC IN with hole

YES! 910
WC IN with hole
