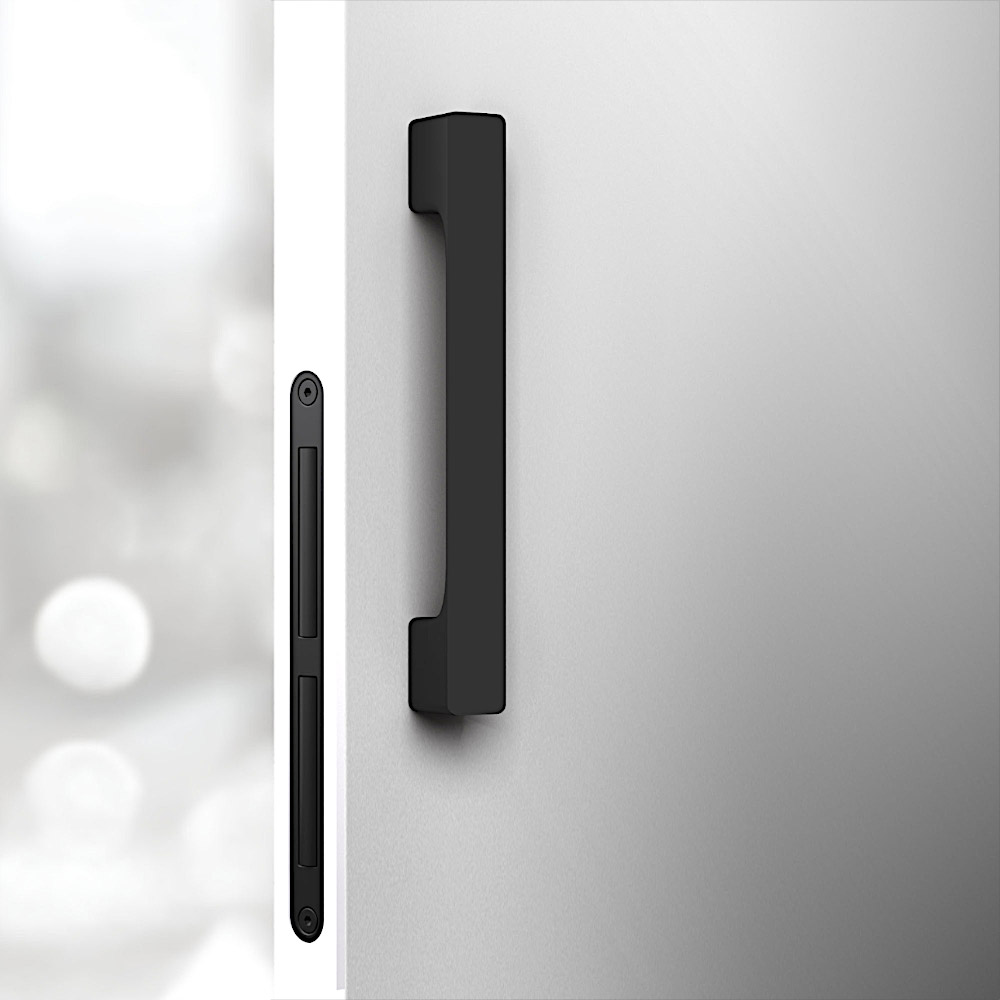

LONG HAND GRIP MINIMAL

MINIMAL

Significant massive long hand grip with perfect ergonomics and dominant appearance. The shape follows the complete collection of door and window fitting Minimal with emphasis to align the entire interior the only one design range of fitting.
This long hand grip is produced from massive brass, manually polished and grinded. For maximal selection is available in 9 surface finishes.

design: Roman Ulich

Technical information

Assembly system	assembling long handgrips against each other with set screws M6
Assembly time	2 - 4 min., variant WC/ bathroom 5-10 min.
Dimensional application	standardly for door thickness 38-42 mm, bigger door thickness should be specified to deliver longer mounting screws
Preparation into door	drilling hole
Surface finishes	SNi nickel matt, SNi-gr nickel matt grinded, Cr polished chrome, Ms brass natural, Ms-A brass antique, Cr-K black chrome grinded, TIN-C titanium chrome matt, TIN-B titanium brown matt, TiN-K titanium black matt
Length	297 mm
Dimension	33×297 mm (W×H), output over the surface of the door 40 mm
Variant WC/ bathroom	external WC mechanism including rosettes 33x47 mm + mini lock
Variant cylindrical	cover rosettes 33x47 mm, th. 10 mm + mini lock
Assembly instructions + Preparation into door	Assembly instructions Hand grip long Minimal (PDF) Assembly instructions Hand grip long Minimal cylindrical (PDF) Assembly instructions Hand grip long Minimal WC (PDF) Drawing Hand grip long Minimal milling (PDF), (DWG) Drawing Hand grip long Minimal cylindrical milling (PDF), (DWG) Drawing Hand grip long Maximal WC milling (PDF), (DWG)

Technical drawings

standard

cylindrical

WC IN

WC EX
